520 mL/Ø95mm – Plastic Tub
SMALL TUB RANGE COMES PACKED WITH BIG FEATURES!
AYVA’S 520ml Maxi Tub | Ø95mm Series
Maxi Tub Range
Ayva’s Tub range is made in Australia from Impact Co-Polymer or Ultra Clear PP, for high performance industrial and food grade applications. Our Tubs and lids can be decorated with full colour graphics using In Mould Labelling (IML) technology.
- Standard & Custom Colouring Available for all Tubs &/or Lids
- Superior Lid Seal
- In Mould Labelling for the tub and lid
- Tamper-Evident Seal for Quality Assurance
- Made with Impact Co Polymer or Ultra Clear PP
- Food Contact Approved
- Easily De-Nestable
Optional Features
Certification
Applications
Our 520 mL plastic tub is made from impact resistant polypropylene, specially formulated for high performance industrial and food grade applications.
SPECIFICATIONS

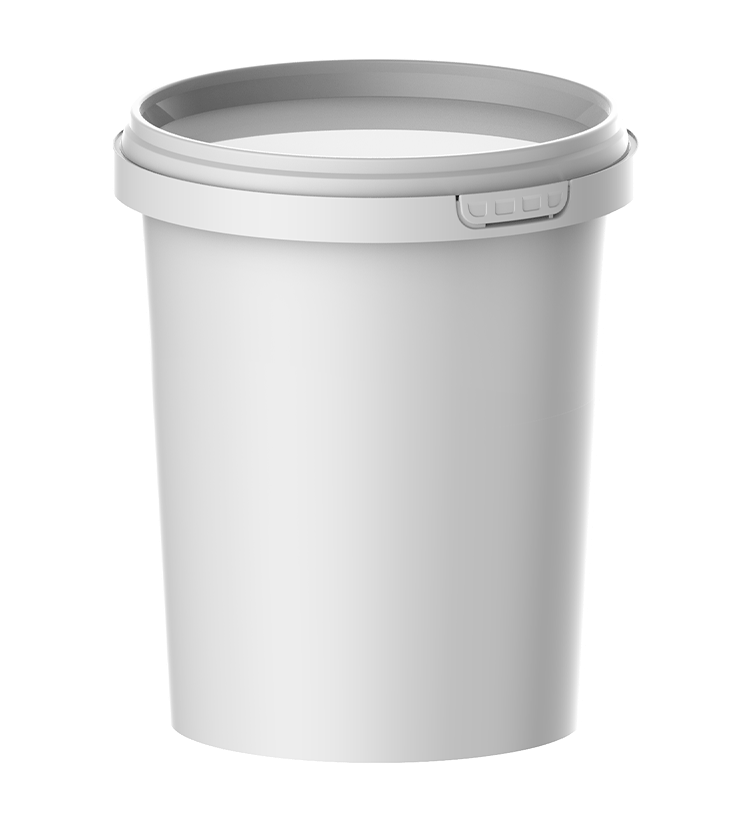

520 mL/Ø118mm – Container
| Tub Brimful Capacity | 640ml |
| Tub Lidded Capacity | 520ml |
| Tub Weight (ex Handle) | 17.5g +/- 5g |
| Tub Height | 114.25 +/- 2mm |
| Tub Height with Lid | 114.8 +/- 2mm |
| Tub Maximum Diameter | 95.8mm +/- 2mm |
Standard Pallet Configuration
| Pallet height | 2,030mm |
| Pallet weight | 315kg |
| Total tubs per pallet | 15,120 |
| Total tubs per carton | 504 (liner in each carton) |
| Cartons per layer | 6 |
| Layers per pallet | 5 |

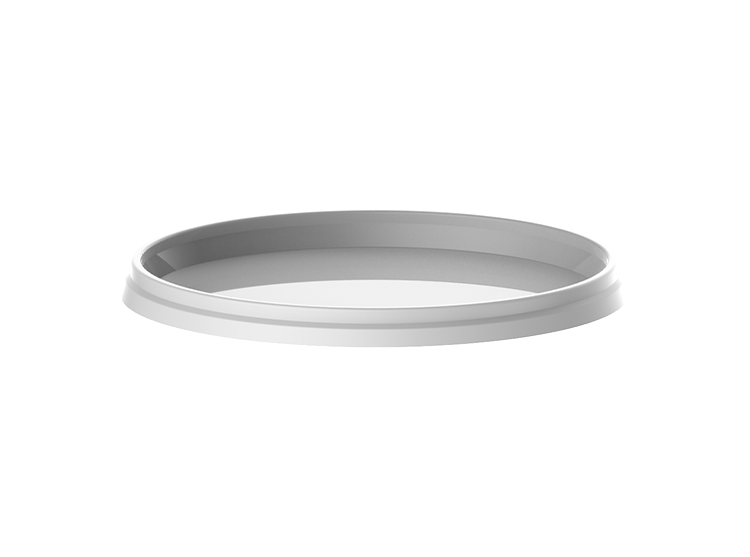

Ø118mm – Lid (universal lid for 300mL, 480mL, 565mL, 750mL and 870mL)
| Lid Weight | 4.5g +/- 0.7g |
| Lid Width | 93.56mm +/-1.5mm |
Standard Pallet Configuration
| Pallet Height | 1,110mm |
| Pallet Weight | 225kg |
| Total Lids per Pallet | 38,880 |
| Total Lids per Carton | 2160 (liner in each carton) |
| Cartons per Layer | 6 |
| Layers per Pallet | 3 |
